Making a Self-hosted Photo Gallery: Week 1
  1. Posts/

Making a Self-hosted Photo Gallery: Week 1

·759 words·4 mins·
Project Frame
Roman
Author
Roman
Photographer with MSci in Computer Science and a Home Lab obsession
Table of Contents

I have an idea for a self-hosted photo gallery/frame app. I am sure there are others out there already, but I want to make my own. Once it’s done, I could see myself extending it with things like GPS or date metadata validation, naming convention checks, that sort of thing. I have TBs of family pictures and have always wanted something functional but lightweight. Immich is great, but it has a timeline-centric view and I prefer browsing by folder. I also want a digital frame mode that surfaces rarely-seen photos, because when you have TBs of pictures, a lot of them fall through the cracks. I’ll try to document progress here weekly. So what’s the plan?…

Project Description
#

A photo gallery that doubles as a digital frame. The app indexes a media directory, extracts metadata, and serves two modes:

  • Gallery mode - Web UI to browse media by folder or timeline
  • Frame mode - lightweight display endpoint that cycles through photos intelligently; the backend runs on a server, but the frame itself is just a browser pointed at it, a Raspberry Pi on a TV, a kiosk, anything on the network

Feature List
#

Core
#

  • Scan directory, extract EXIF (date, location, camera), generate thumbnails
  • WatchService for auto-detecting new/deleted files
  • Browse by album, date, location

Gallery #

  • Auth access
  • Shareable links with expiry and optional password

Frame Mode
#

  • Public (or PIN-protected) /frame endpoint
  • Weighted rotation: prioritise unseen or rarely shown photos
  • Display history tracked in DB
  • Configurable rules via admin panel (date-based, folder-based, random)

Tech Stack
#

Concern Technology
Backend Java 25 + Spring Boot
Frontend Thymeleaf + HTMX
Database PostgreSQL

Thymeleaf + HTMX keeps the frontend server-rendered, no build toolchain, no JS framework to wrestle with. I am no frontend developer and i wont’ want to spend my time on that.

What’s implemented so far this week
#

Still rough around the edges, just the happy path for now so it would be easy to break. The main goal this week was to get the full stack wired up and see how it all feels together.

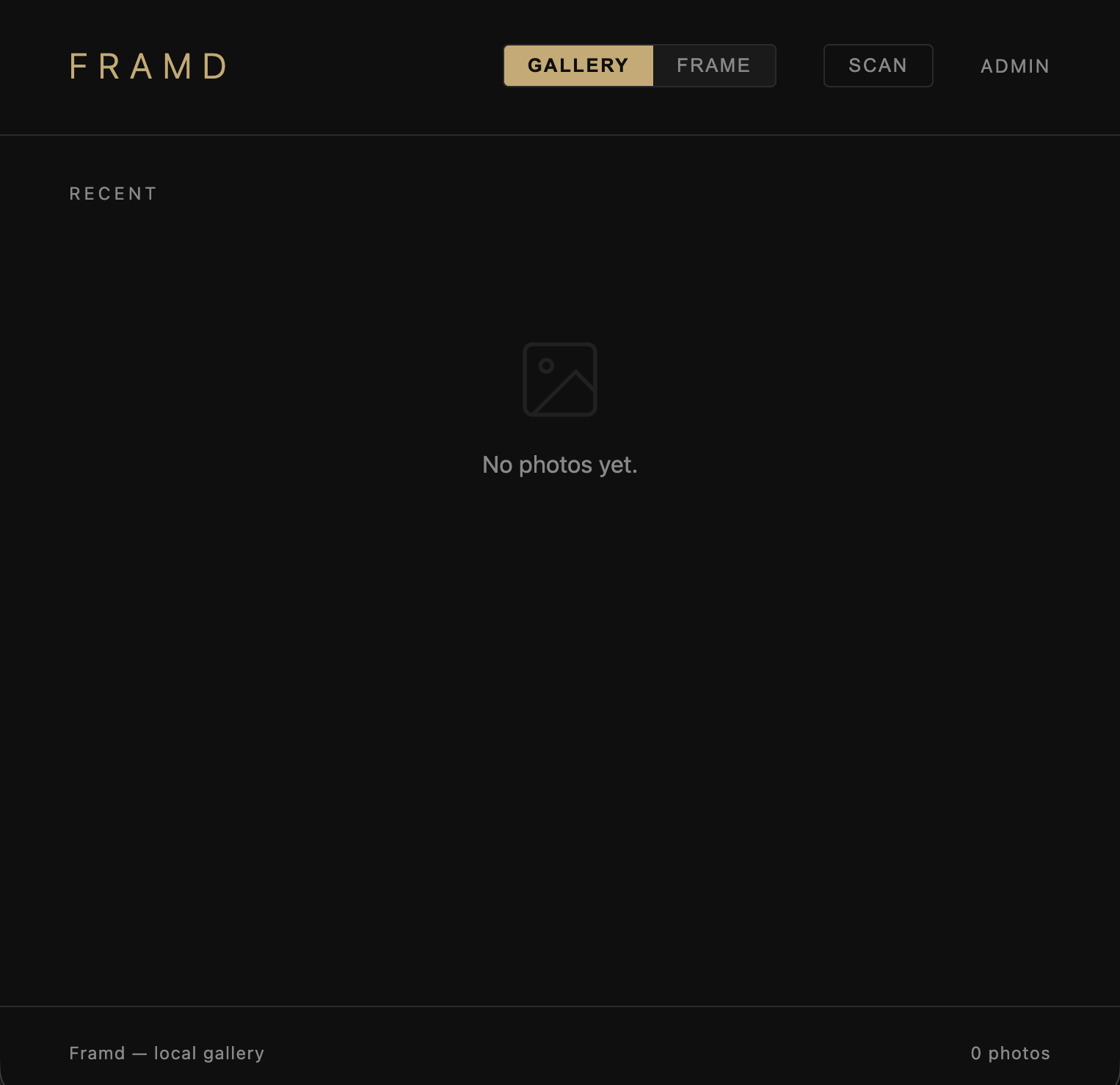

Empty state
Empty state - no photos scanned yet, scan button visible in the top bar

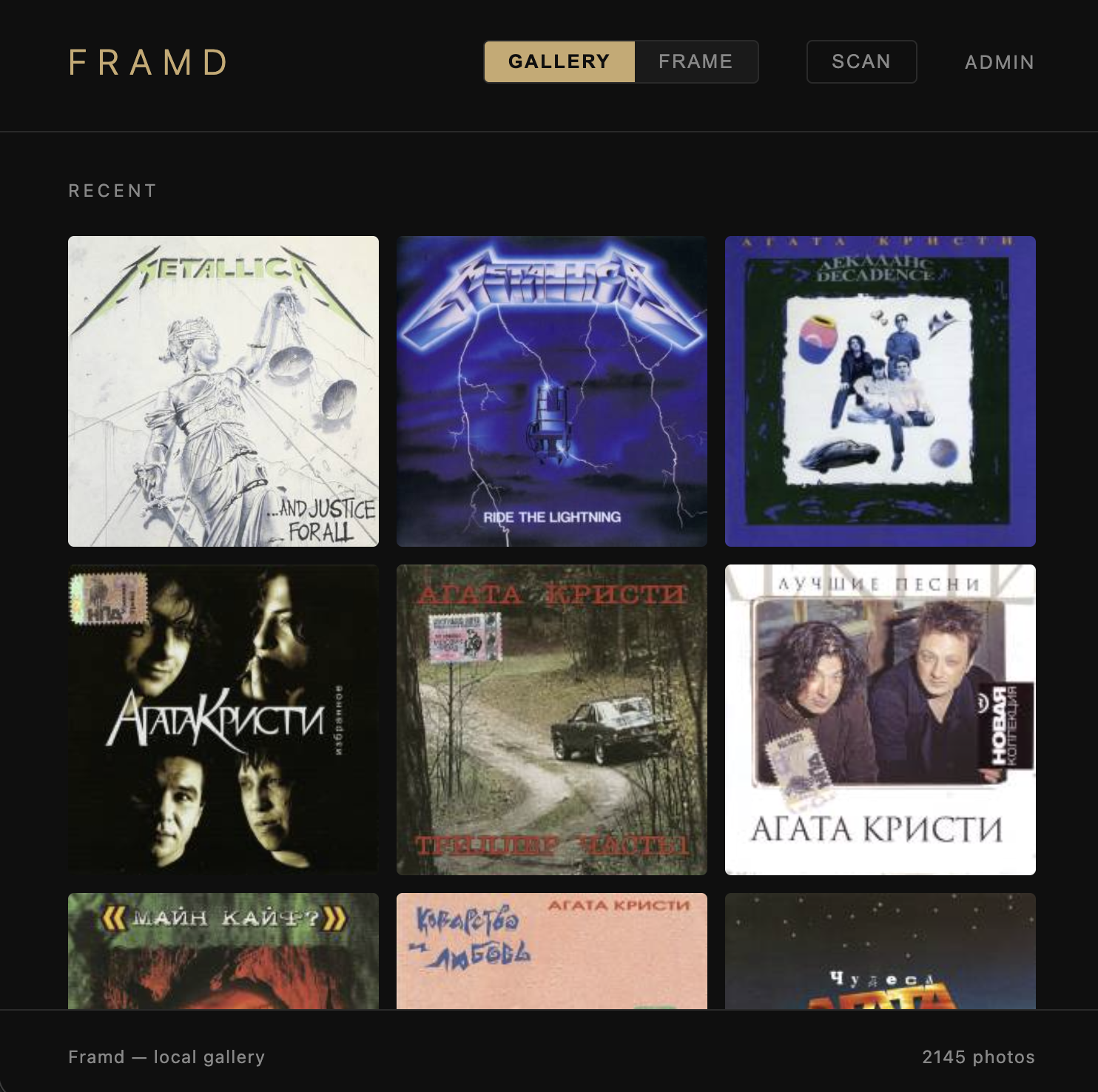

Gallery after scan
Gallery after a scan - photos loaded into the grid

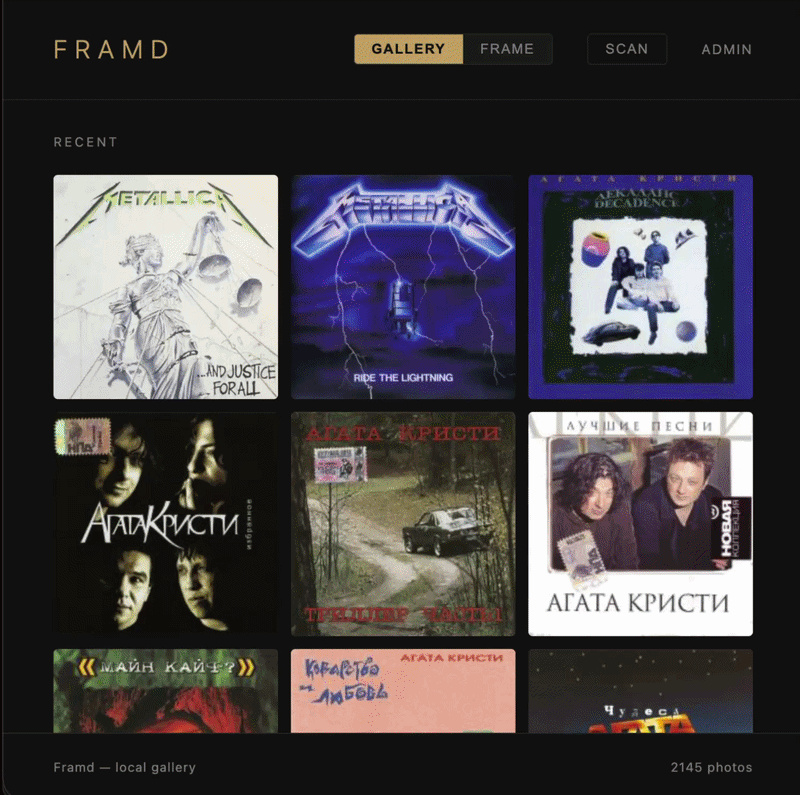

Lazy loading
Lazy loading in action - images load as you scroll (works a bit too well to show off)

Indexing

  • FSIndexer walks the directory tree via Java NIO, filtering image files by extension (jpg/jpeg/png/webp/heic)
  • EXIF extraction via Drew Noakes metadata-extractor 2.19.0, with SubIFD and IFD0 parsing for capture date
  • Sha256Hasher streams files in 8 KB chunks through MessageDigest
  • ~1 min to index

Thumbnails

  • ThumbnailService via Thumbnailator (net.coobird:thumbnailator 0.4.3)
  • 30% scale, 70% JPEG quality, mirrored directory structure under ./.thumbs
  • 14 GB → 290 MB
  • ~10 min to generate

TODO: Indexing, hashing, and thumbnail generation are all currently single-threaded, hence the times above. Tested against ~14 GB / 2,315 images. Planning to switch to a multi-threaded approach next week.

Infrastructure

  • Docker Compose (docker/postgres/docker_compose.yaml): PostgreSQL 17 + Adminer on port 8080

Database Schema - IndexedMedia
#

Column Type Notes
hash String (PK) SHA-256 of file content
path String Parent directory
name String Filename without extension
extension String jpg / jpeg / png / webp / heic
captureTime LocalDateTime EXIF date or fallback to now
lastIndexedTime LocalDateTime Set on each index run
lastModifiedTime LocalDateTime File system mtime
width Integer TODO: extract from image
height Integer TODO: extract from image
sizeInBytes Long TODO: extract from file
thumbnailPath String (nullable) Path under .thumbs/

API
#

Method Path Description
GET / Serves the main page
POST /scan Triggers a full directory scan, indexes files, extracts EXIF, generates thumbnails
GET /gallery Returns the gallery grid fragment (consumed by HTMX on the main page)
GET /thumbnail/{hash} Returns thumbnail image for a given file hash
GET /photo-count Returns the total number of indexed photos as a string

Challenges
#

Not much to report for week 1, but one thing worth thinking about early: thumbnail storage. The current approach mirrors the source directory structure under .thumbs, but I want to avoid a deeply nested hierarchy and make it easy to clean up stale thumbnails when the original is deleted or changed.

What’s next
#

  • Proof of concept is done, time to clean up and make it less breakable
  • Implement a WatchService to auto-detect new and deleted files
  • More tests
  • Switch to virtual threads for indexing and thumbnail generation
  • Extract actual image dimensions width/height
  • Get sizeInBytes
  • Add 404 handling to GET /thumbnail/{hash} when the hash is not found
  • Skip re-indexing already known files (currently a re-scan overwrites existing records)
